Following on from our last post, we’d like to provide an update: the custom computer desk for Gil Addison at PathPoint was recently delivered, bringing that particular project to a close. This desk raises up and down to any given height using an electrically driven linear actuator. The wheelchair user carries the remote control key fob, allowing complete adjustment from near or far. The desk is intentionally designed to tip the computer forwards to face down towards the user, as many wheelchairs seat the occupant in a reclined position.
You can play with the online CAD model here.
At the time of this writing, we are still waiting for feedback on the end result and photos of the desk in action. But in the meanwhile, enjoy some photos of the students as they put together the final product and examined the results. Thank you, Gil, for helping us execute such a meaningful project!
|The final product assembled in the workshop, after some
final modifications. The actuator placement had to be changed
in order to create more torque to lift the table.

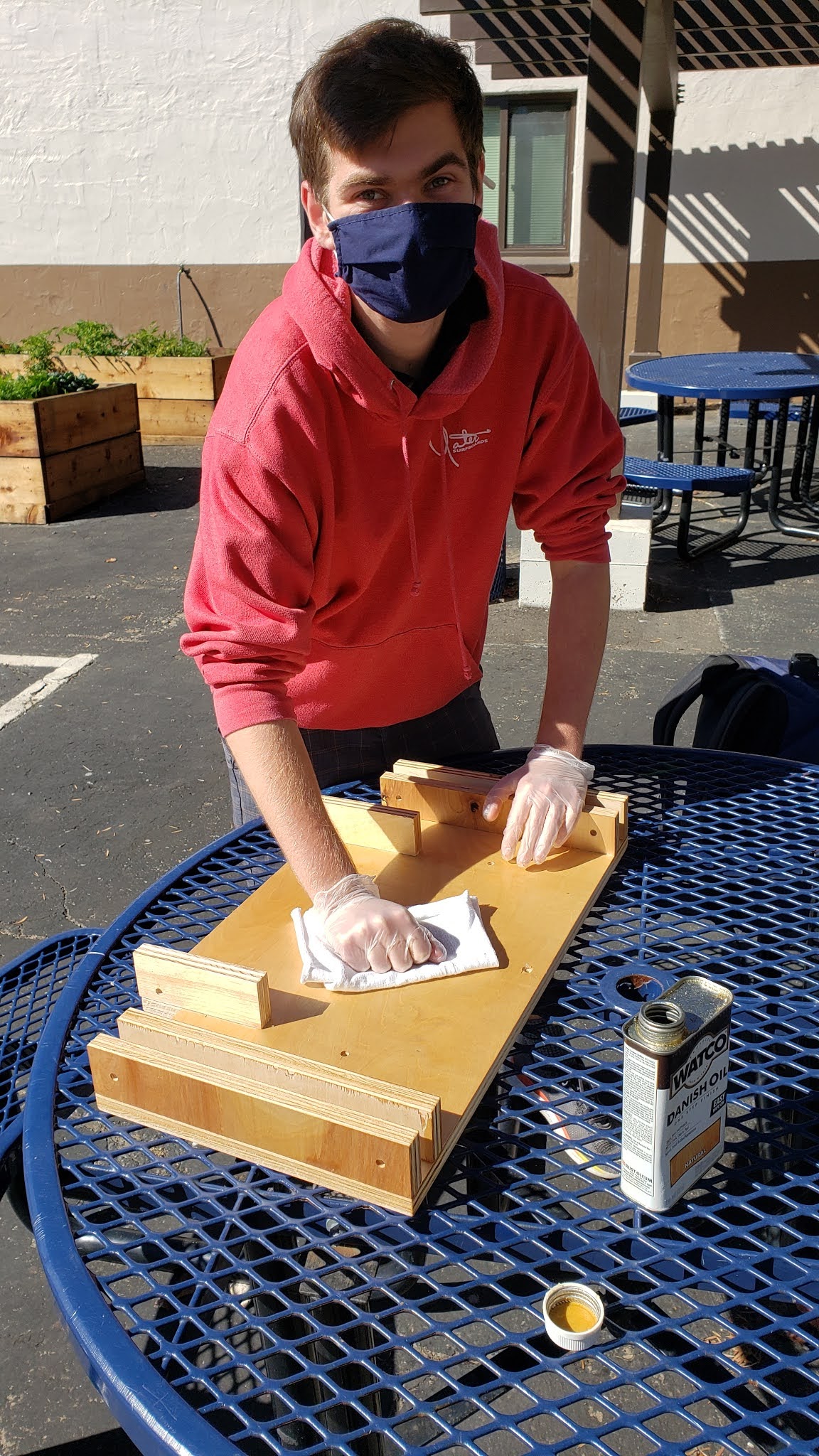

|After disassembly, Nolan (senior) set to
work applying the protective oil to the
upper table surface

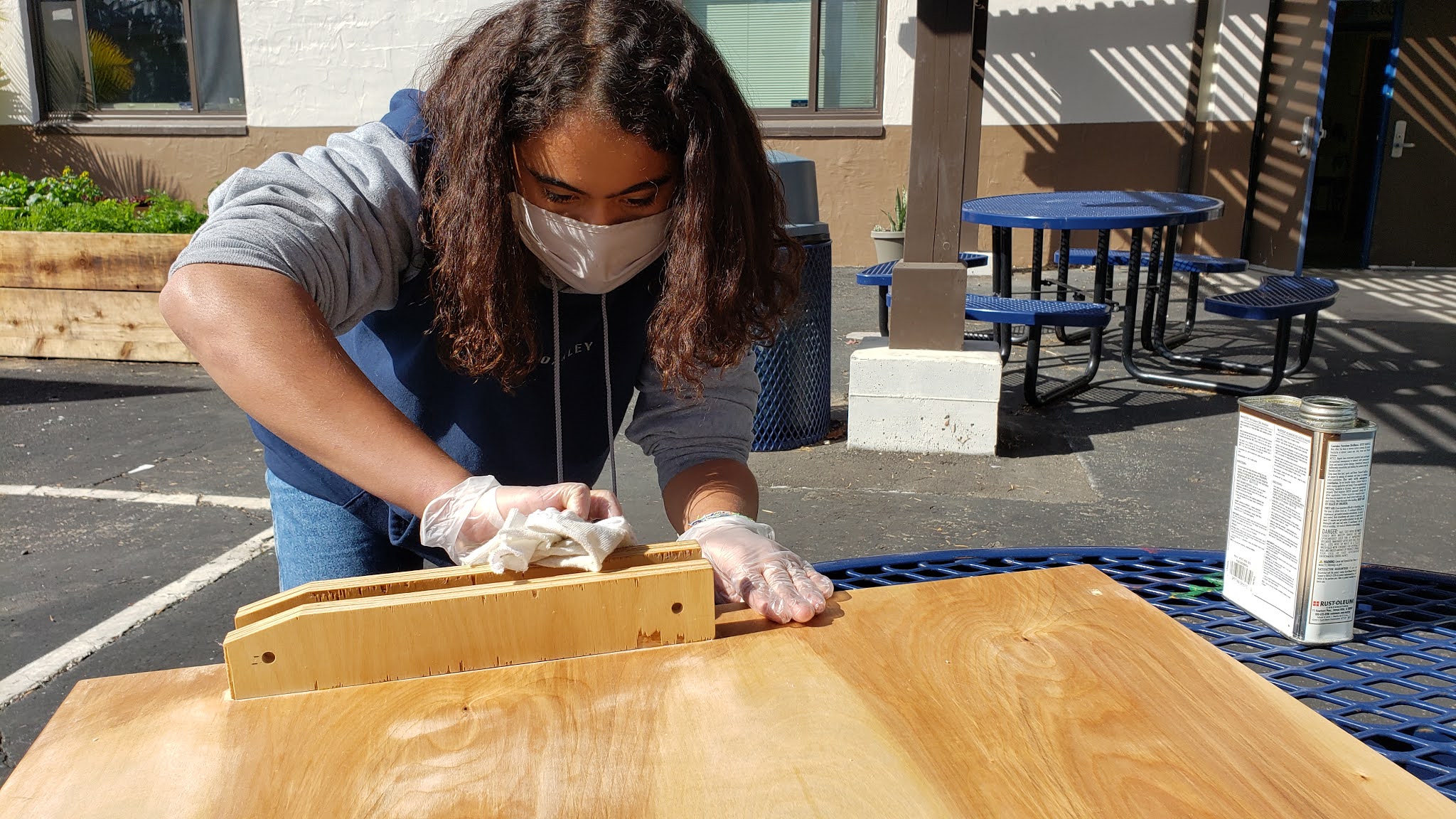

|Abby (freshman) oils the lower base piece|

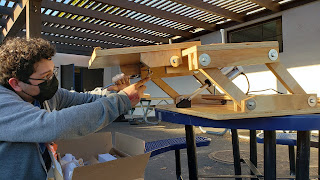

|After all pieces were oiled, Angel (sophomore) reassembled
the entire structure together with Mr. Meadth

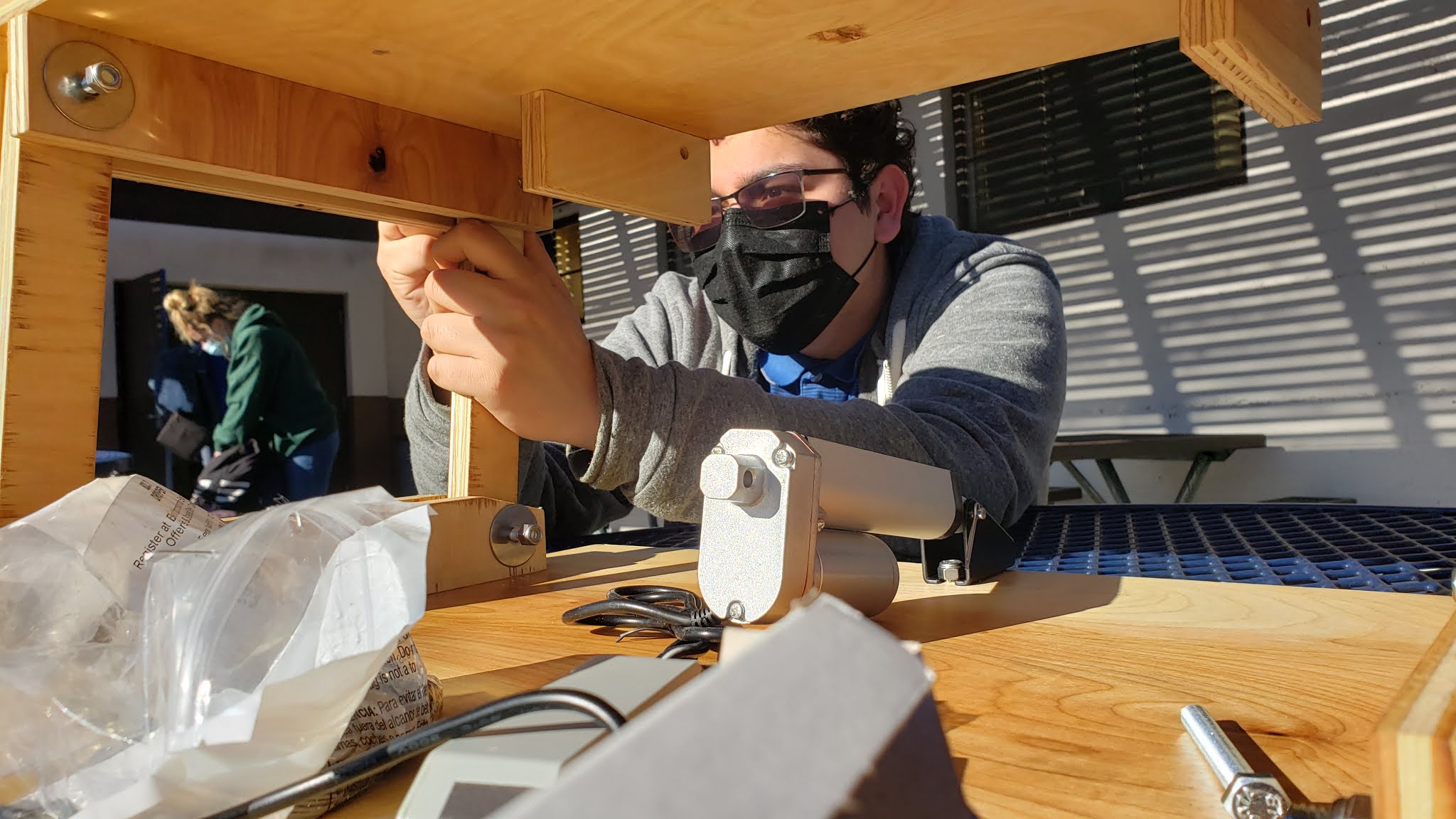

|A few more bolts to go–almost there!|

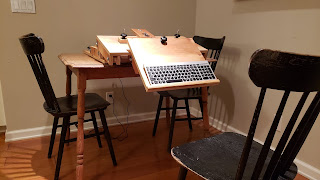

|The finished product as attached to a typical household
table, keyboard shown
|The finished product in the full lowered position|
|Teleios, Hunter, and Abby (freshmen) get their first
look at the end result on the day of delivery

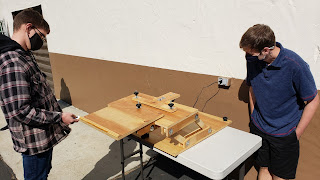

|Joshua and Nolan (seniors) test out the remote control|
|The whole team from left to right: Hans, Abby, Hunter,
Teleios, Mr. Meadth, Angel, Joshua, and Nolan
(James was also in this group); note an iMac computer
attached as per intended use
