The second semester of the middle school elective, Intro to Engineering, takes on a special theme each year, and is intended for 7th and 8th Graders who are repeating the class. Last year, the theme was space exploration, and the theme was matched with our first annual Science & Engineering Expo, which was a huge success.
This year, the second semester theme is “Machines”, with a focus on the simple machine types described by Renaissance scientists. We have looked at the history of modern and pre-modern humanity in this area, wrapped around such figures as Leonardo da Vinci, Archimedes, and Vitruvius (not the LEGO wizard–sorry!). As well as the artistry and ingenuity, we’re also studying the idea of the physical concept of work, and how energy is conserved and transmitted in mechanical systems.
One of the simple machines that was studied in antiquity was the pulley–a rope wrapped around a wheel to change the direction of force. The compound pulley is even more interesting, and allows us to dramatically increase our “mechanical advantage”. In everyday terms, this means that we can make ourselves stronger. But to talk about it is not enough: you have to prove this kind of thing outside!
Using Mr. Gill’s outdoor education equipment and some 400 lb pulleys from Ace Hardware, the students themselves arranged the constituent pieces, hanging from the sturdy structure of the outdoor basketball hoop (not the hoop itself). On the previous day, they had worked with small model version indoors, so they knew how to set things up. It didn’t hurt to have some Boy Scouts in the group, too!

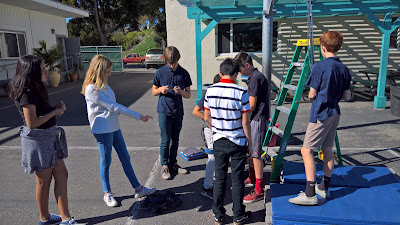

|Students working out how to set up the equipment|

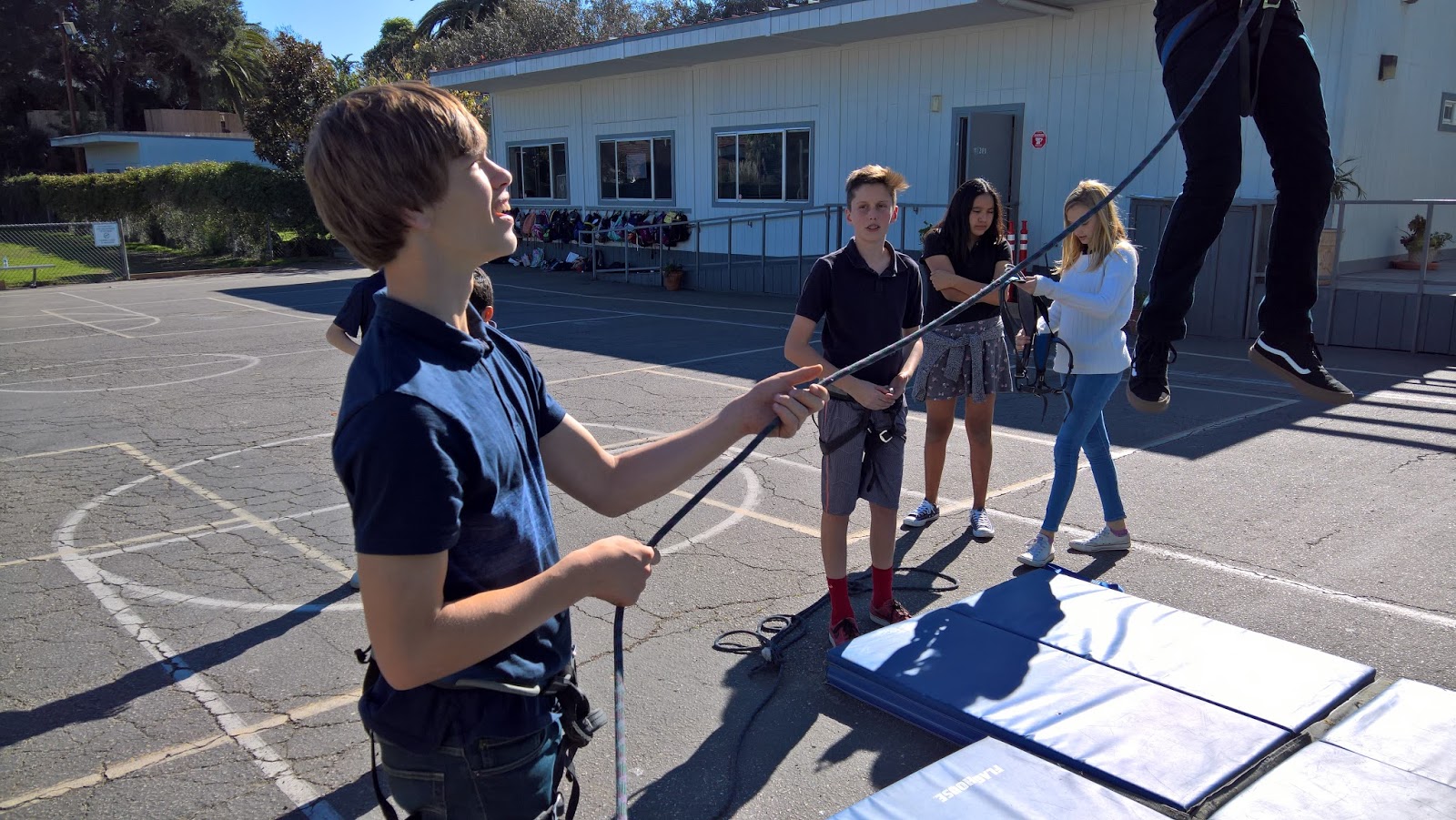

With everything secure and checked, and a safety mat below, the first student was hoisted up into the air.
|Julian was our first contestant!|

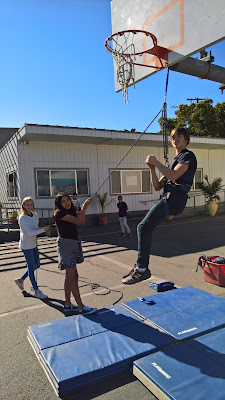

|Pedro gets a taste of the air up there|

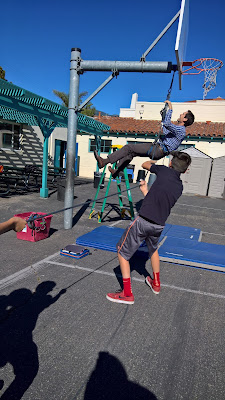

|Josh holds on as Pedro slam dunks!|
Our particular compound pulley system had two wheels where the hanging student was located. This means that there are four lengths of rope leading away from the load. This gives a mechanical advantage of four, which means that, aside from friction losses, the person pulling is made four times as strong! If a 100 lb student hangs from the pulley, the person pulling only feels 25 lb.

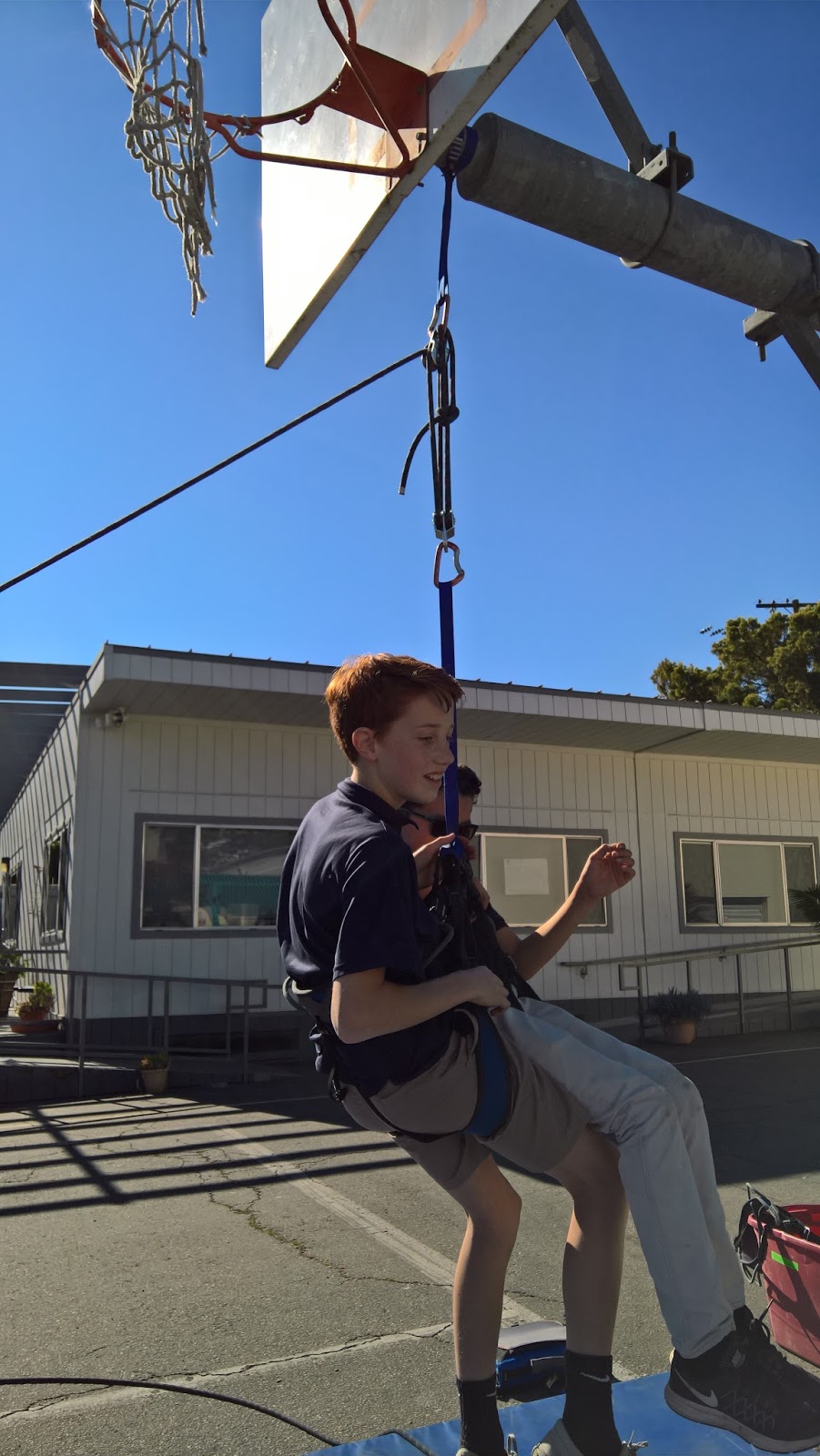

Two wheels at top and two at bottom; the lower pulley moves up with the load,
while the upper pulley stays in a fixed position; note Sam’s bowline knot!
Other notable moments possibly occurred as well…

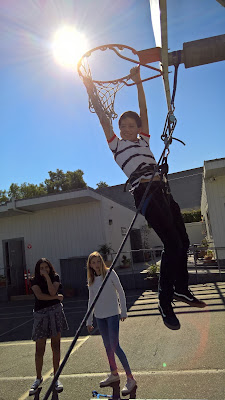

|Chloe representing for the girls!|
|Tommy and Julian being lifted together at once|
|Mr. Meadth showing a great deal of trust in Sam|
|Payback time for Chloe and Belen|
More news coming up later this semester, and keep an eye out for this semester’s Science & Engineering Expo in April!
